Special OEM fiber reinforced pvc tube making machine FOB Reference Price:Get Latest Price 6432627874677389632-blid-4078372381462763729
ให้โชคอีก เลขบนฟ้าเหนือป่า"คำชะโนด" งวดก่อนออก 26 เต็มๆ
Product Application of fiber reinforced pvc tube making machine:
GPM series PVC Pipe Production Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes. The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing
Technical specifications for PVC/UPVC Pipe Production Line
Model
Pipe Spec(mm)
Conical twin screw extruder
Max output(kg/h)
Total power(kw)
GWG63-PVC
Φ20-Φ63
GSZ65/132
180-300
104
GWG160-PVC
Φ63-Φ160
GSZ65/132
180-300
105
GWG250-PVC
Φ75-Φ250
GSZ80/156
300-450
110
GWG315-PVC
Φ250-Φ315
GSZ80/156
300-450
216
GWG450-PVC
Φ200-Φ450
GSZ92/188
650-750
290
GWG630-PVC
Φ315-Φ630
GSZ92/188
750-850
350
GWG800-PVC
Φ500-Φ800
GSZ135/31
950-1100
410
Parallel twin-screw extruder technical specifications
Model
Motor(KW)
Screw diameter(mm)
Max.speed(rpm)
L/D
Max Capacity
(kg/h)
Weight
(kg)
GSP75/28
37
75
36
28:1
280
4100
GSP93/31
45/55
93
45
31:1
450
4700
GSP110/31
90/110
110
45
31:1
680
6500
GSP120/31
110/132
120
45
31:1
850
7500
GSP135/31
160
135
45
31:1
1100
8400

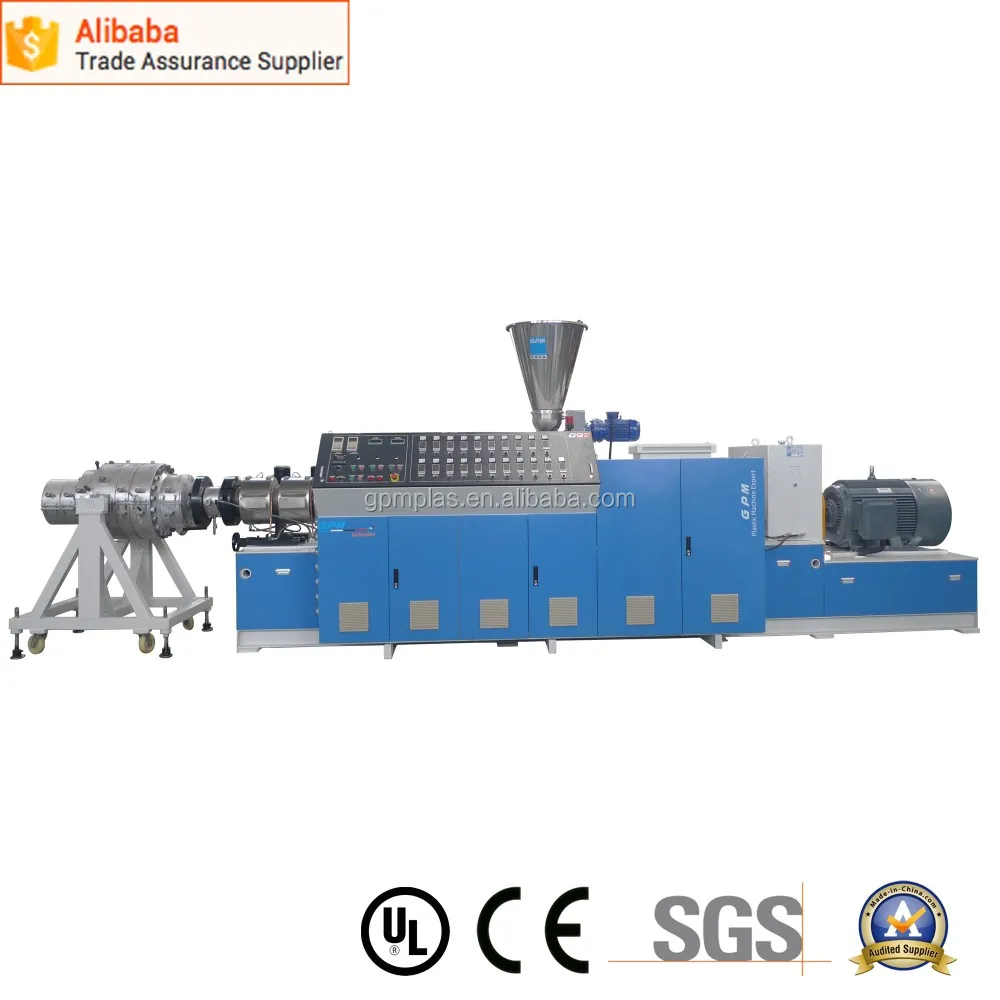

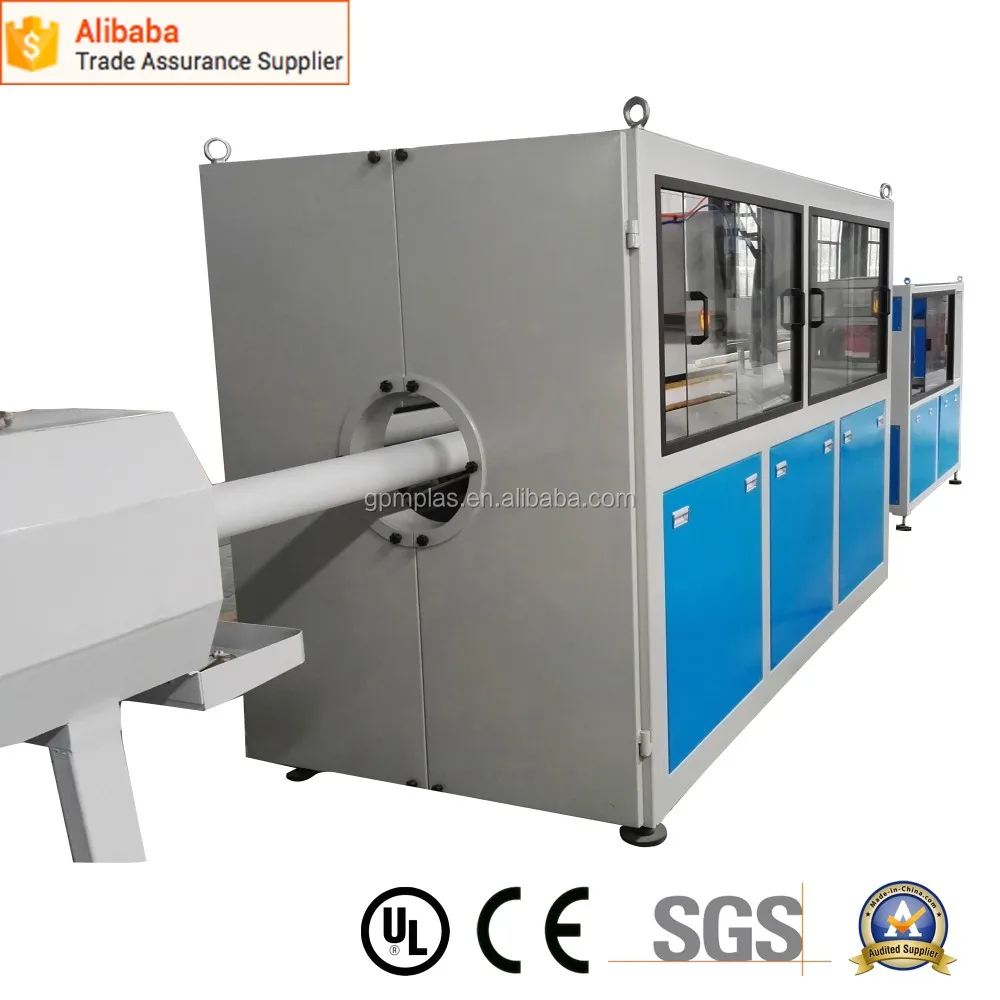

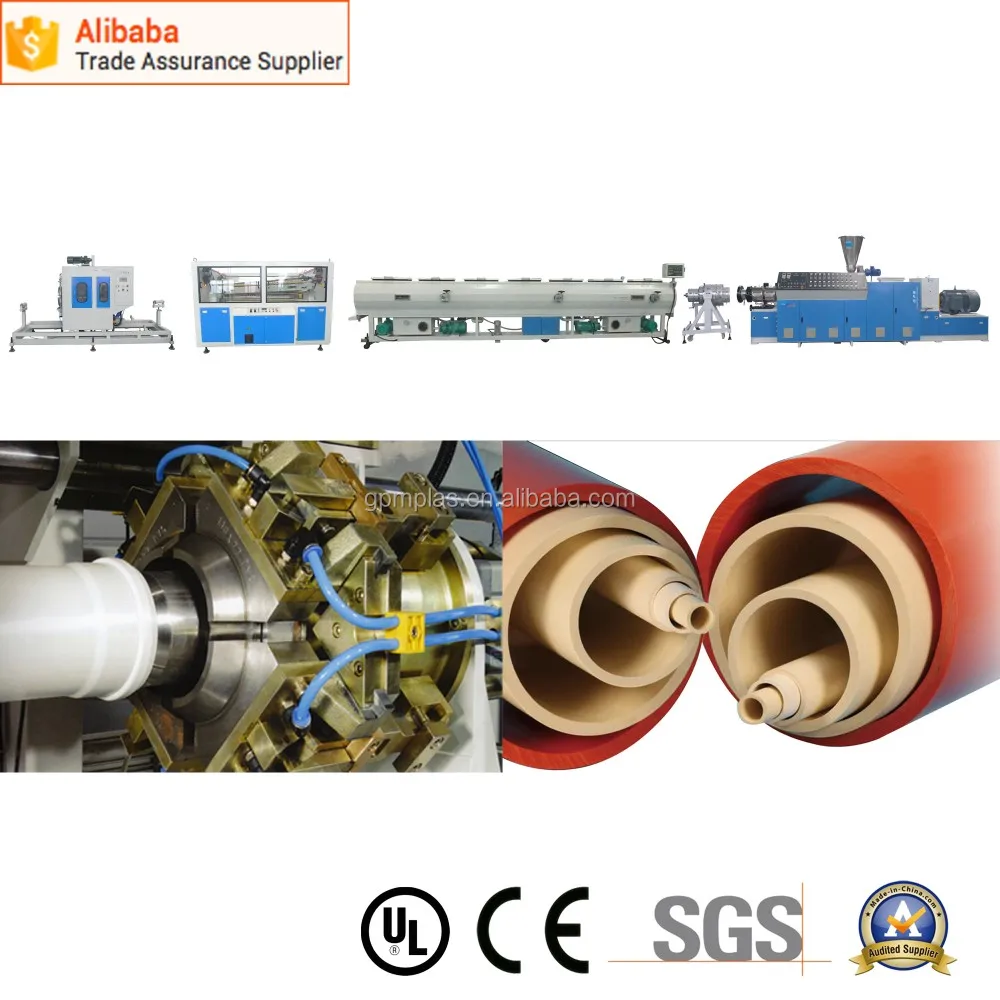

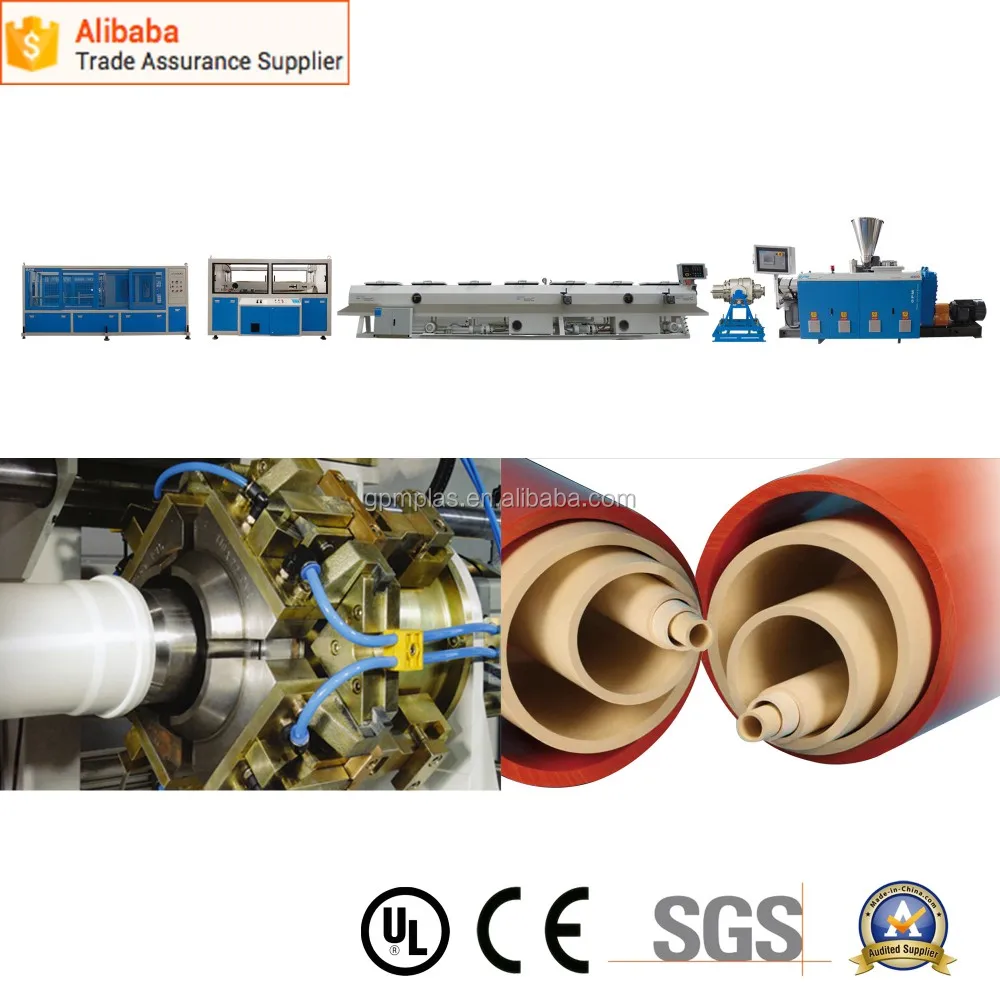

Pictures of fiber reinforced pvc tube making machine:
Main Features of fiber reinforced pvc tube making machine:
1. Excellent in chemical corrosion, no rust;
2. With self extinguishing and flame retardant;
3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;
4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;
5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;
6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;
7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.
2. With self extinguishing and flame retardant;
3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;
4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;
5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;
6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;
7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.
CERTIFICATES
